DUPLEX 2.4EX MRPM Hall
€55.90
Op voorraad (kan nabesteld worden)
Omschrijving
DUPLEX 2.4EX MRPM Hall

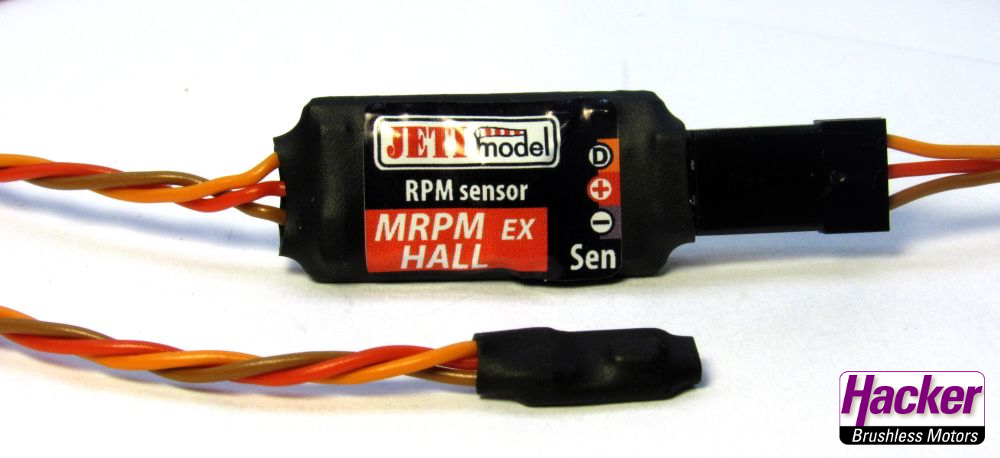

The DUPLEX 2.4EX MRPM Hall sensor is used to measure the RPM by using a Hall sensor. For this purpose, a magnet is attached to the rotating part to be measured. The Hall sensor detects the RPM without contact. It is therefore also ideally suited for measurements on flywheels, gearwheels, etc.
Technical specifications:
Dimensions [mm]: 12.5x25x5.5
Weight with cable [g]: 5
Measuring accuracy: 10 rpm
Operating temperature [° C]: -10 to +85
Supply Voltage [V]: 3.5 – 8.4
Power Consumption [mA]: 15
Aanvullende informatie
| Gewicht | 0.5 kg |
|---|---|
| Afmetingen | 5 × 5 × 5 cm |
