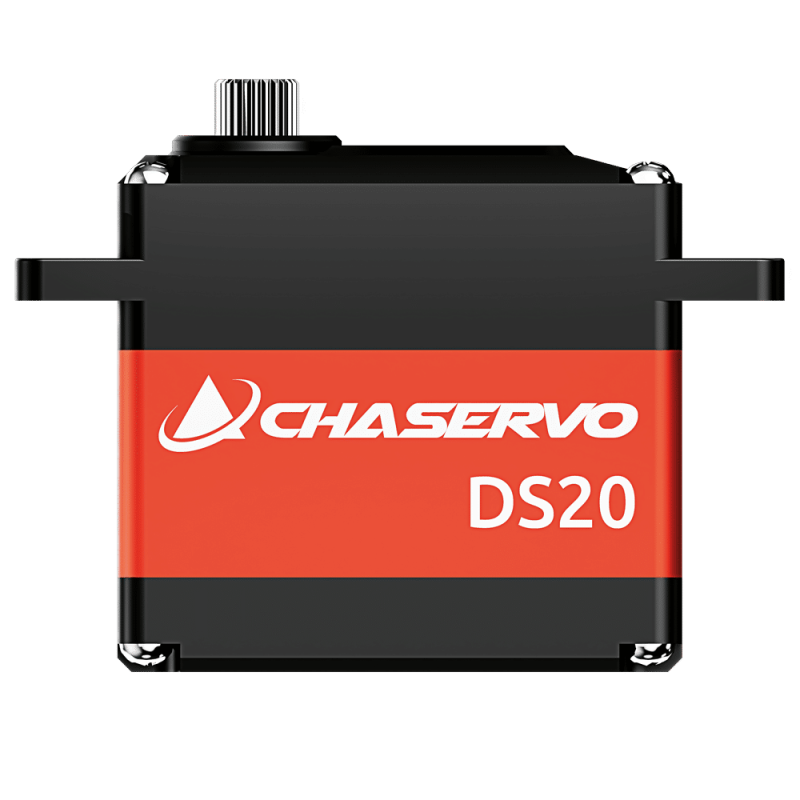

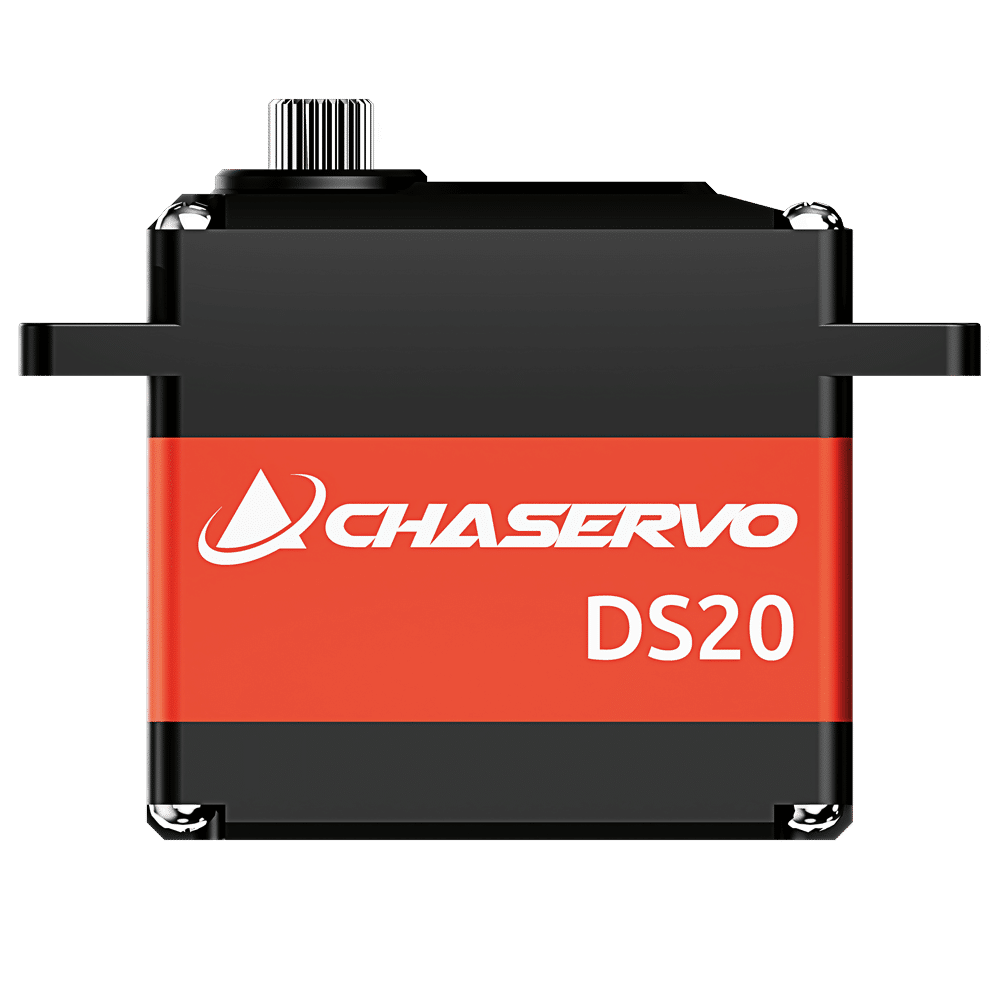

CHASERVO DS20 SERVO HV (22,1KG / 0,08S, @ 8,4V)

DESCRIPTION

• Dimensions : 40 mm x 20 mm x 38 mm
• Weight : 64 g
• Rated  Voltage : DC 7.4 V
• Voltage Range : DC 4.0 – 9.0 V
• Torque : 17.0 kg.cm @ 6.0V || 20.4 kg.cm @ 7.4V || 22.1 kg.cm @ 8.4V
• Speed : 0.11 sec/60° @ 6.0V || 0.09 sec/60° @ 7.4V || 0.08 sec/60° @ 8.4V
• Max. Current : 5.82 A @ 6.0 V || 6.25 A @ 7.4 V || 6.45 A @ 8.4 V
• Case Material : High Quality Technopolymer and Aluminium
• Gear Set Material : Hardened Steel
• Ball Bearing : 2x Ball Bearing
• Position Sensor : Potentiometer
• Motor Type : Coreless DC
• Working Frequency : 1520 µs / 333 Hz
• Pulse Range : 900 µs – 2100 µs
• Programmable : Yes
• Gear teeth : 25T
